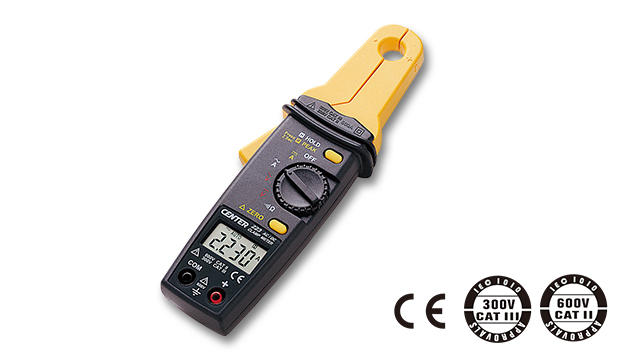

CENTER 223_ AC/DC Clamp Meter (Mini Size, High Resolution)

Production information

• AC/DC Current
• Pocket Size

• Analog Signal Output Function
• Peak Hold Function
• Data Hold Function
• Touch Zero Function

• 1mA Resolution
• Autoranging
Auto Power Off


Function Range Resolution Accuracy
ACA 10A~100A 1mA~10mA ±2.0%rdg+10dgts
DCA 10A~100A 1mA~10mA ±2.5%rdg+10dgts
ACV 600V 0.1V ±1.5%rdg+5dgts
DCV 600V 0.1V ±1%rdg+2dgts
Ohms 10KΩ 0.1Ω ±1%rdg+3dgts
))) Active Sound Level: ≦ 100Ω
Display: 4 digital Liquid display, Maximum reading 9999
Sampling Rate: 2 times/sec(digital reading)
Battery: 1.5V, size AAA battery x2
Dimensions: 202x70x34 mm
Weight: 180g
Maximum Jaw Opening: ø 12.5 mm
​ PS.  The above specifications and other information are subject to change without notice.
Please contact sales person for the latest specifications update.
