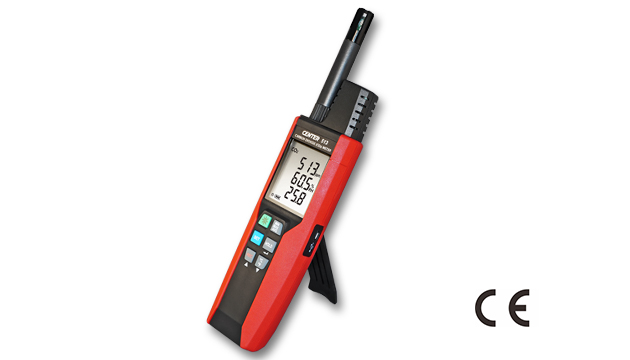

CENTER 513_ Datalogger Carbon Dioxide (CO2) Meter (NDIR)

Production information
FEATURES

• CO2, Humidity And Temperature Sensors
• Dual Wavelength NDIR CO
2 Sensor (Non-Dispersive Infrared) For Superior Stability
• User Operated CO
2 Calibration
• Data Hold & Max/Min/STEL/TWA Function
• Adjustable Auto Power Off Timer
• Internal CO
2 Alarm Buzzer
• Datalogging Up To 32,000 Sets
• USB Interface, PC Software Included
• Backlight Display Function





SPECIFICATIONS

Measurement Range:
  CO
2: 0 ~ 30000 ppm (5000~30000 ppm over range)
  Temperature: -20 to 60°C(-4°F to 140°F)
  Humidity: 0 ~ 100%RH
Accuracy:
   CO
2: ± (75 ppm + 3% of reading)  (0 ~ 5000 ppm)
   Temperature: ± 0.8°C
   Humidity: ± 3%RH
Resolution: 1 ppm, 0.1°C/0.1°F, 0.1%RH
Response Time: 20 seconds
Battery Type: 9V alkaline battery
Battery life:  Approximately 10 hours normal use (alkaline battery)
Operating Condition: 0°C to 50°C(< 90%RH)
Storage Condition: -20°C to 60°C(< 75%RH)
Dimensions: 284.5x65x38.5 mm
Weight: 304 g
Accessories: 9V Battery、Instruction Manual、micro USB cable、Windows software、Carrying case.
