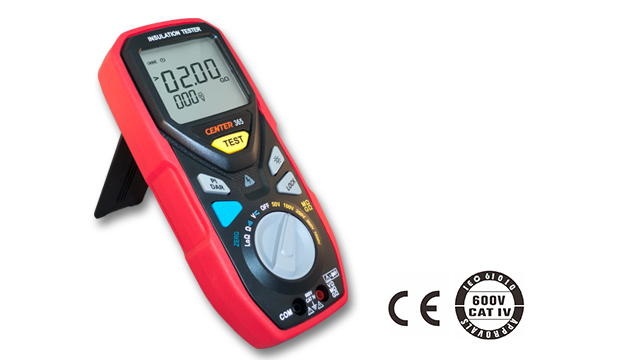

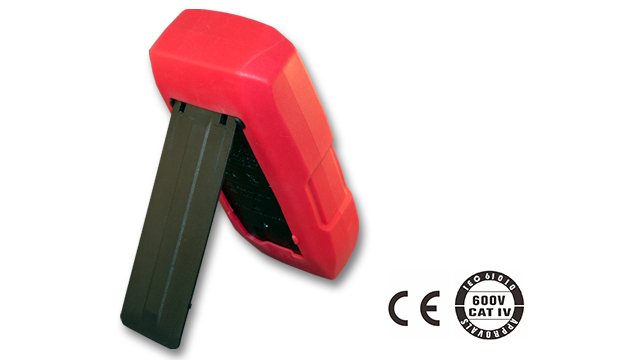

CENTER 365_ Insulation Tester

Production information
FEATURES

• Insulation Test Range Up To 20GΩ
• Test Voltages Of 50V, 100V, 250V, 500V and 1000V For Insulation Test
• >1mA Short-Circuit Test Current For Insulation Test
• Live Circuit Detection

• Open Circuit Test Voltage > 4V and Short-Circuit Current > 200mA For LoΩ Test
• Power Source: Size AA Batteries  (IEC LR6) x 4pcs


SPECIFICATIONS

Insulation Rresistance Measurement
Insulation test voltage Range Accuracy
50V 300KΩ/3.00MΩ/30.0MΩ/300MΩ/1.00GΩ ±(3%rdg+5dgts) (30KΩ~1.00GΩ)
100V 600KΩ/6.00MΩ/60.0MΩ/600MΩ/2.00GΩ ±(3%rdg+5dgts) (60KΩ~2.00GΩ)
250V 1.50MΩ/15.0MΩ/150MΩ/1.50GΩ
5.0GΩ
±(3%rdg+5dgts) (0.15MΩ~1.50GΩ)
±(10%rdg+3dgts)
500V 3.00MΩ/30.0MΩ/300MΩ/3.00GΩ
10.0GΩ
±(3%rdg+5dgts) (0.30MΩ~3.00GΩ)
±(10%rdg+3dgts)
1000V 6.00MΩ/60.0MΩ/600MΩ/6.00GΩ
20.0GΩ
±(3%rdg+5dgts) (0.60MΩ~6.00GΩ)
±(10%rdg+3dgts)

AC/DC Voltage
Range Resolution Accuracy (AC: 45~500Hz) Protection
60.00V/600.0V  0.01V/0.1V ±2%rdg+5dgts 600Vrms

Resistance
Range Resolution Accuracy Protection
600.0Ω/6.000KΩ/60.00ΚΩ/600.0ΚΩ  0.1Ω/0.001KΩ/0.01ΚΩ/0.1ΚΩ 2%rdg+5dgts 600Vrms

Continuity
Range Resolution Accuracy Protection
600.0Ω  0.1Ω ≦ 7Ω±1Ω 600Vrms

LoΩ
Range Resolution Accuracy
6.00Ω/60.0Ω  0.01Ω/0.1Ω 2%rdg+3dgts

Auto Power Off: Approx. 10 minutes
Approvals: EN61010 600V CAT IV
Electromagnetic Compatibility: EN61326-1
Battery: 1.5V size AA battery x 4
Dimensions: 206x90x51 mm
Weight: 510g
